To: MSI/NIS Science Team

From: Jeff Warren (warren@msss.com), Mike Malin (malin@msss.com)

Subject: Shot Noise Limiting Companding for MSI

Date: 8 February 1995

Introduction

Two 12-to-8-bit companding algorithms have been suggested for MSI: one uses a simple linear mapping between 4095 and 255; the other attempts to minimize the error introduced by the coarser bins when attempting to reproduce the original 12-bit values from compressed data (i.e., minimizing the percentage difference between the original 12-bit input and a 12-bit value reconstructed from an 8-bit value). One point that is overlooked in these algorithms is the impact of nonlinear noise in the original 12 bit signal; that is, the photon counting, statistical or "shot" noise. Since shot noise increases as the square root of the signal, higher signal data have larger noise levels (although they also have higher signal-to-noise ratios). Linear, or lin-log companding, leads to an oversampling noisy data while unnecessarily throwing away data that could otherwise be resolved. This memorandum describes an algorithm for computing a lookup table to optimally compand "noisy" 12 bit data to 8 bits while introducing a minimal amount of quantization noise.

Noise Characteristics

For the purposes of this memo, a CCD will be considered a device for counting electrons. A perfect device would be able to count the electrons in the input signal and produce an exact replica as its output. However, experiments that count items over an interval of time (e.g., photons incident upon a CCD during a 100 ms exposure) are subject to measurement fluctuations that result because random samples of events distributed randomly in time contain numbers of events that fluctuate from sample to sample. The likelihood of observing any given number of counts is given by the Poisson probability function, where the uncertainty is proportional to the square root of the mean value.

In attempting to invert the observed count to infer the original signal, the counting uncertainty introduces an uncertainty in the reconstructed value. Table 1 shows an example of how uncertainty in the counting statistics can affect the output signal. Note that in Table 1 not only are the output values incorrect, they actually trend in the direction opposite of the input signal. Since this attribute of the data is independent of the efficiency of the device, it sets a limit on the precision with which any measurement should be made. Any additional precision is wasted, as one is then simply measuring "noise."

Input Signal    Max Counting error/Noise   Example noise  Output Signal

    100            sqrt(100) = 10              +5             105


    103           sqrt(103)=10.1489            -5              98



                                  TABLE 1

Figure 1 shows in graphical form the "one-sigma" uncertainties associated with a portion of a CCD's total range. Note the significant overlap in the possible output values. The regions where the uncertainty bars overlap represent output values that cannot be mapped to distinguishable input values. In this example, an output value of 100 has a finite probability of having been generated by an original value as low as 91 and as high as 110. Even lower (and higher) original values may also have been counted as 100, with lower probability.

If two values in the output signal have uncertainty values that do not overlap, the input signals that generated them are considered discernible from one another, on the basis of statistical arguments that values that differ by two-sigma are discriminable. Figure 1 illustrates this convention: consecutive or adjacent output signals that vary from, for example, 90 to 115, are more likely to have been caused by a real change in the input signal, while those that vary from 92 to 108 are consistent with a constant input signal of 100 with only a variation in the random noise. If one does not wish to retain and quantify the high frequency variation in the output signal that results from this statistical variation, the output signal can be resampled to a coarser resolution which increases the probability that transitions in the output signal represent real changes in the input signal. Since this is a coarser sampling of the original output data, a smaller number of bits can be used to represent this new output signal.

Noise Limiting Quantization

A step function has been developed that resamples the original count space into bins whose centers have a constant probability of being discriminated from adjacent bins. Figure 2 shows graphically what the resampling algorithm achieves. Stated explicitly, if the sqrt(N) distribution about the input value represents a 1 sigma probability, then this requantization ensures that the centers of adjacent bins represent real changes in the input signal to a probability of 2 sigma.

The first bin is chosen such that its maximum value equals the "full well" (the maximum possible number of counts) of the detector. For the purposes of this discussion, it has been assumed that the full-well count of the detector is equal to 500,000 electrons. Other full-well values will give rise to different values for resampling, as discussed at the end of this memo. For this example, the center of the first bin (represented by No) is chosen such that:

No + sqrt(No) = 500000

To solve this equation for No, a change of variables is performed:

X = sqrt(No)

This yields the equation:

X^2 + X - 500000 = 0

This is simply a quadratic whose roots are given by:

X = { -1 +/- sqrt[1 + (4 * 500000)] } / 2

Having solved for X, No can now be computed as:

No = X^2 = 499293.393042

The next bin is then chosen such that its maximum value matches the the minimum value of the first bin. The minimum value of the first bin is given by:

k = No - sqrt(No) = 499293.393042 - 706.606958 = 498586.786084

The equation for the center of the next bin (represented by N1) is then given by:

N1 + sqrt(N1) = k

This is the same equation used above to generate the first bin (when k was equal to 500000). Thus, the center of each of bin can be computed using the following equation:

X = { -1 +/- sqrt[1 + (4 * k)] } / 2
N = X^2

where k is initially 500000, and then subsequently set to X - sqrt(X) for the next iteration.

Up to this point, this calculation has assumed that the CCD produces counts at a resolution of 1 electron. Owing to limitations in analog-to-digital conversion, the CCD's signal is actually quantized into 4096 distinct levels. Assuming that the conversion from electron counts to DN follows a linear relationship, and maps the full-well value to the full 12 bit range, the actual signal produced by the CCD is given by:

DN = N / S

DN = CCD output
N = original electron count
S = scaling constant = 4096 / 500000 = 122.0703

Values for N produced by the previous equations should be converted to DN values using the equation above. As values for N become smaller, multiple bin centers start mapping to the same value in DN space. At this point, signal differences between the centers of DN values are guaranteed to be discernible from one another and therefore no quantization is necessary for smaller DN values.

Listing 1 shows the C code that implements the algorithm just described. This program produces 677 bins in the original 12 bit DN space that represent a noise limited approximation to the original input signal. Table 2 shows the results obtained by running this program.

At this point, the algorithm has requantized the dynamic range from 4096 levels (12 bits) to 677 levels (10 bits), preserving within the data the ability to discriminate any two values with a confidence of greater than 2-sigma.

Additional Quantization To 8 Bit Space

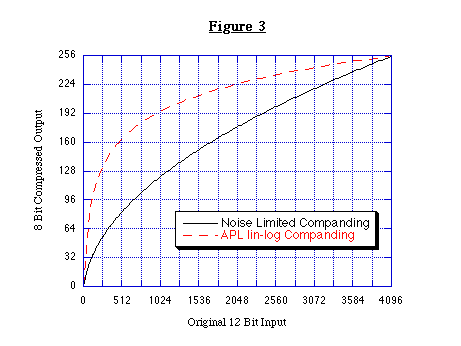

Owing to the nature of the MSI, the desired companding algorithm is one that reduces the original 12 bits down to 8 bits using a single lookup table. This can be achieved by sampling the 677 levels previously determined at 256 regular intervals. Listing 2 shows the C code that implements this sampling. In implementation, the order of the original 677 entry table is reversed so that the first entry corresponds to the lowest signal and the last entry corresponds to the highest signal. The table is then divided into 256 bins using linear interpolation between values in the original table to compute the values for the sampled points. The reconstructed DN value for the center of each bin is computed from the average of the bin's extents. Table 3 lists the output produced by this algorithm. Columns 1 and 4 of this table can be used as the lookup table to expand the data from 8 bits back to 12 bits. This table is easily inverted to obtain the lookup table for converting from 12 bits to 8 bits. Figure 3 shows the behavior of this companding algorithm as a plot of the 8 bit values against the 12 bit values. For comparison, the lin-log companding table proposed by APL is also shown.

Implementation Issues

It has been assumed that MSI is a fixed gain camera, that is, that it converts the electron count to DN space by dividing by a constant (full-well value / 4096 DN). Increases in exposure time result in more electrons accumulating on the detector prior to it being read out, but the size of the 4096 bins is a constant, and such exposure variations only change which part of this linear space is being used. Following the division, the DN values are forced to lie in the range of 0 to 4095. This means that 0 electrons maps to exactly 0 DN and the full-well value maps to exactly 4096 DN, which is then clipped to 4095. If the scale factor for converting from electron count to DN space is different from the one assumed throughout this memo (i.e., if it isn't 500,000 electrons), then it should be a simple matter to change the scale factor given in Listing 1. If the analog to digital conversion is nonlinear, then the scaling equation in Listing 1 will need to reflect this more complicated function. In either case, these changes should only affect the values in columns 3, 4 and 5 of table 2. After making these changes, the quantization to 8 bit space should be performed the same way as described to produce new values for Table 3.
