Viking Lander Images and Mosaics
Viking Lander Color Images
Viking color images of the martian surface suffer from a variety of
uncertainties, in particular the relative brightness of the "red" and
"blue" channels. Early reconstructions of the Viking lander images
tended to show "blue" sky, while later reconstructions, trying to
account for out-of-band contributions in each filter, tended to show a
"red" sky, and often an "orange" surface. Owing to calibration
uncertainties, the exact reconstruction of Viking Lander color images
remains more or less an art. Recognizing that even white portions of
the spacecraft will appear slightly pink (or apricot), since sunlight
reaching the surface is filtered through the atmosphere, which has a
fairly high concentration of dust, and further recognizing that
"orange" is not a particularly prevalent geologic "color," the colors
in these reproductions tend more towards reddish-browns.
Individual Viking Lander images are identified as follows:
- Lander/Camera designation
11 = Lander 1, Camera 1
12 = Lander 1, Camera 2
21 = Lander 2, Camera 1
22 = Lander 2, Camera 2
- Sequence Letter
A & B = Primary Mission
C = Primary for VL-2, Extended and Continuing Mission for VL-1
D - J = Extended and Continuing Missions
- Acquisition (frame) in Sequence
Recyles every 255 frames, limiting Sequence length
- Sol (Martian Day) on which images were acquired
Note that multiple images were acquired with the same ID number but
through different color filters. Thus, for individual images (as
opposed to the color composites shown below), the filter through which
the image was acquired was also included in the ID number (Blue,
Green, Red, IR1, IR2, IR3, and CLEAR).

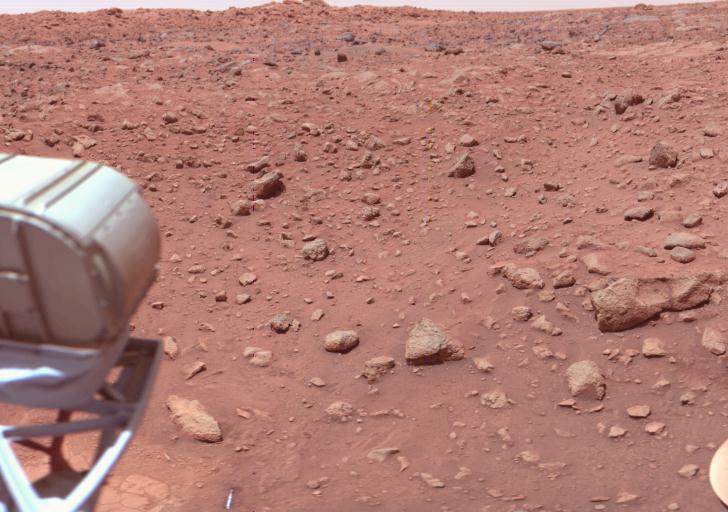

12A168/028
JPEG = 67 KBytes
22A158/021
JPEG = 35 KBytes
Example: 12A168/026 (Lander 1, Camera 2, Sequence A, Frame
168, taken on Sol 26)
Viking Lander High Resolution Mosaics
Viking lander mosaics were constructed from many separate
camera events. Mosaics are mostly seamless since the camera
geometry was fixed and the scene unchanging. The mosaics are
composed of images acquired over a limited range of time-of-
day and season. For this page, only one "time of day" is
presented for each lander, but both camera's views are
included for those who are interested in stereoscopic viewing.
Only JPEG versions of the images are included, owing to the
size of the images.
The lander mosaic ID's include the following information:
- Lander designation
L1 = Lander 1 (Chryse Planitia)
L2 = Lander 2 (Utopia Planitia)
- Camera
C1 = Camera 1 (Left)
C2 = Camera 2 (right)
- Time of Day
AM = morning illumination (from East)
NOON = noontime illumination (from South)
PM = afternoon illumination (from West)
- Quadrant of Mosaic
Each camera views four quadrants)
Q3 and Q4 in Camera 1 covers Q1 and Q2 in Camera 2
Two Quadrants per Section of Mosaic
Example: L1.C1.AM.Q1+Q2 (Lander 1, Camera 1,
Morning Illumination, Quadrants 1 and 2
Viking Lander 1

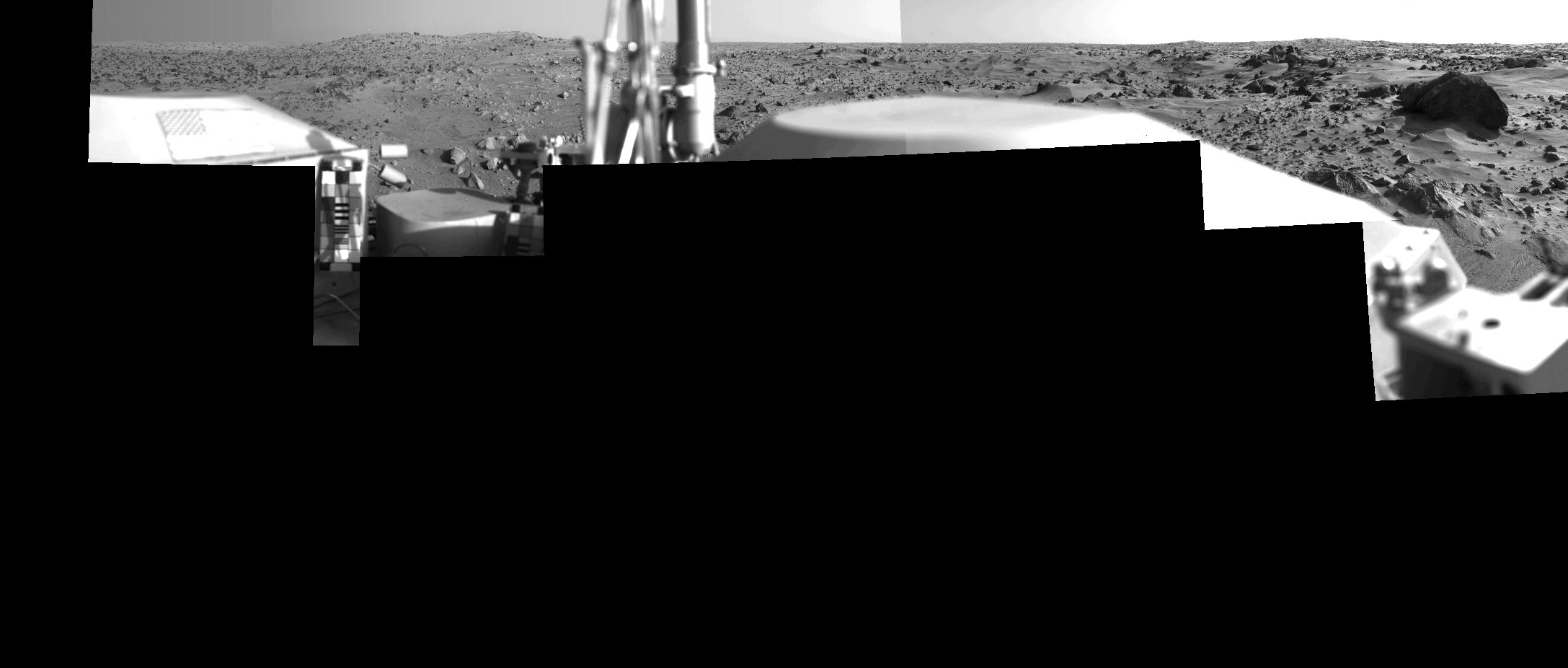

Left: L1.C1.AM.Q1+Q2 (JPEG = 118 KBytes)

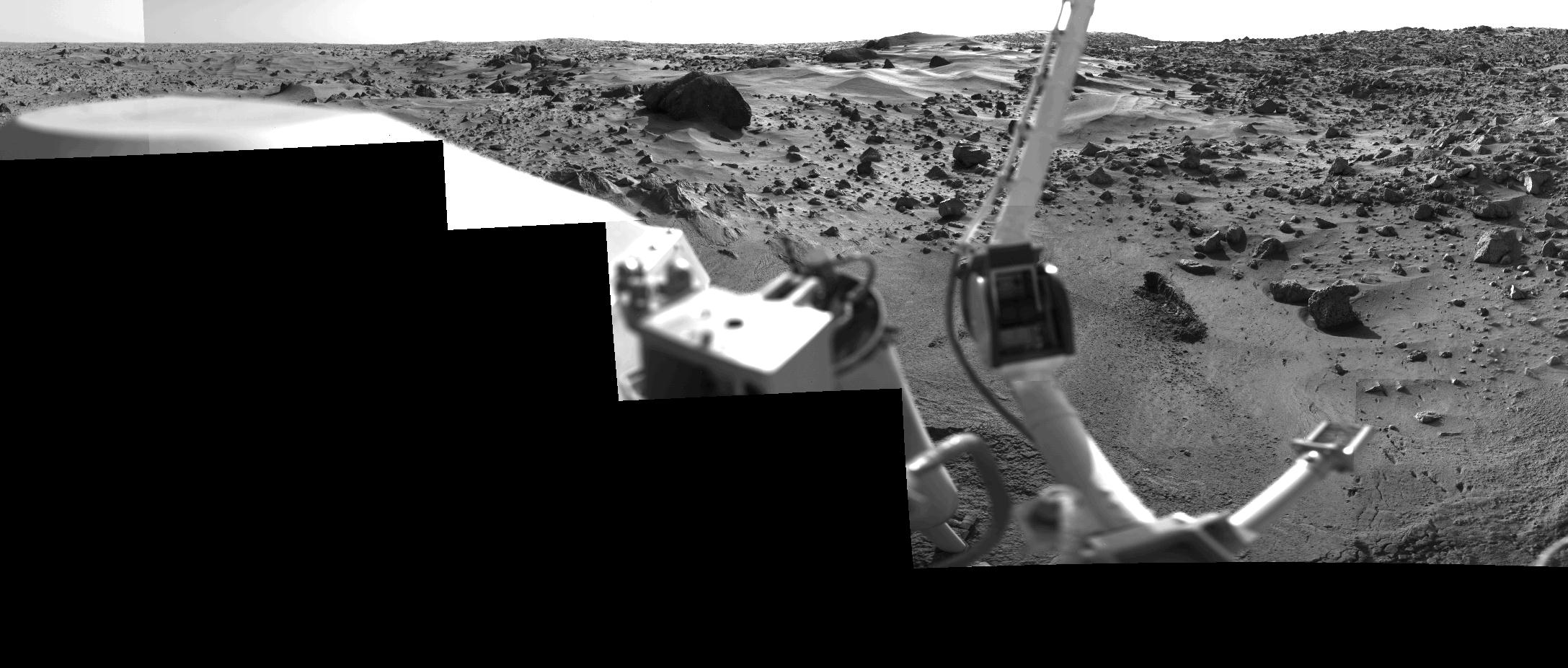

Middle: L1.C1.AM.Q2+Q3 (JPEG = 250 KBytes)

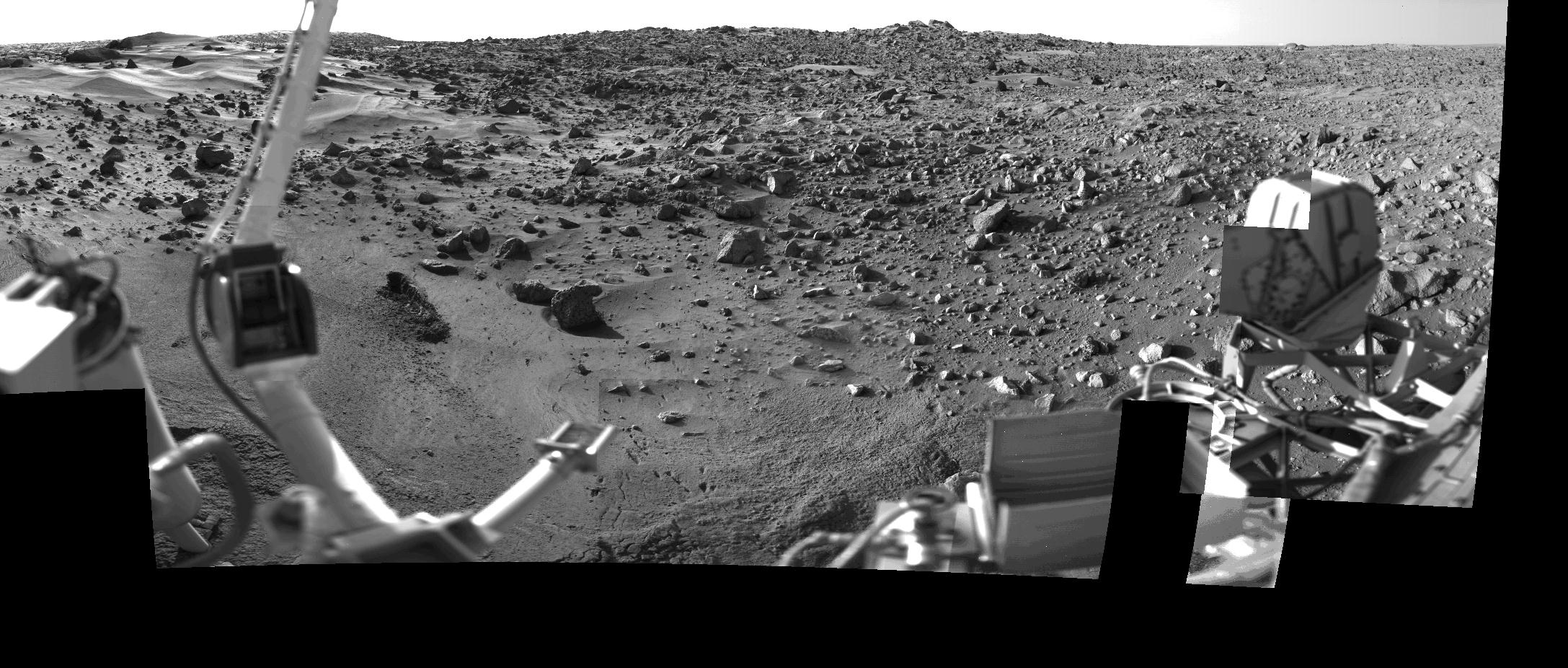

Right: L1.C1.AM.Q3+Q4 (JPEG = 504
KBytes)
Note: L1.C1.AM.Q3+Q4 has been damaged in tranmission to us. We are
trying to see if we can get another copy of it.

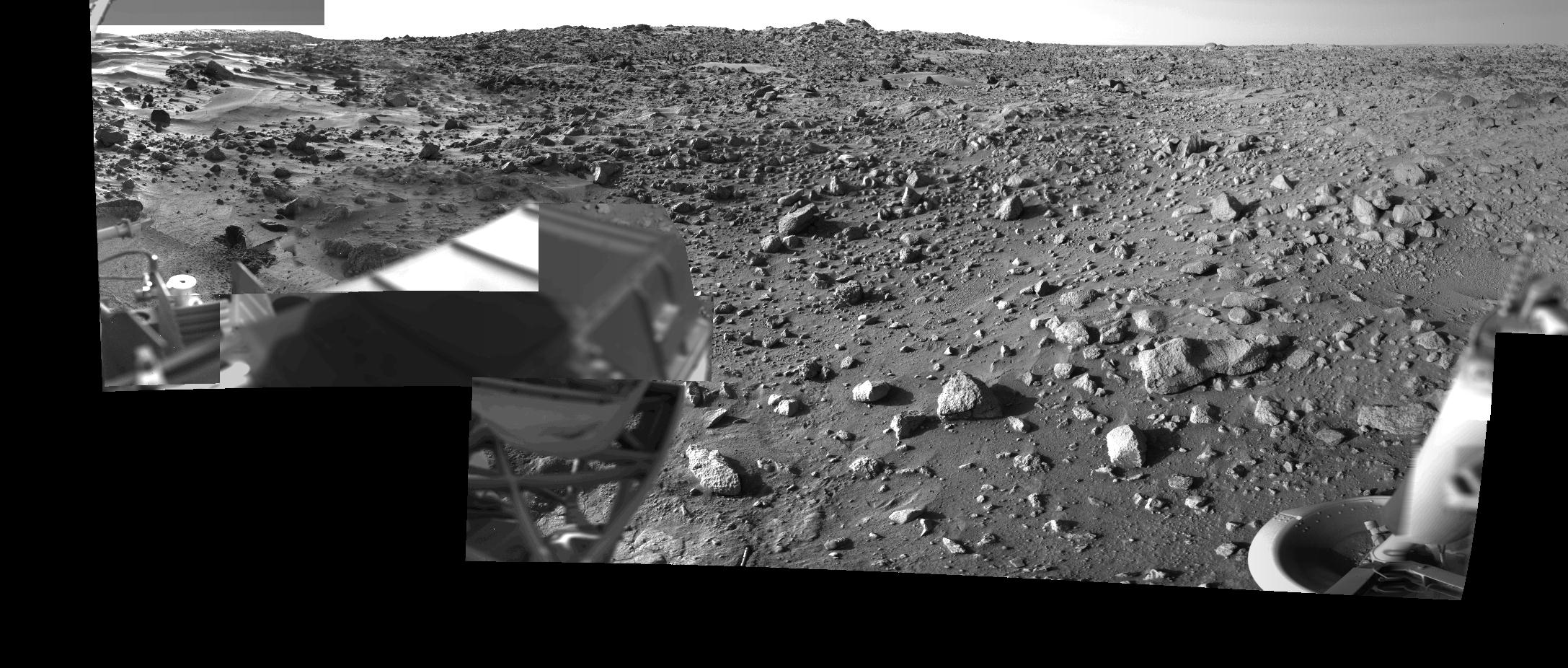

Left: L1.C2.AM.Q1+Q2 (JPEG = 358 KBytes)

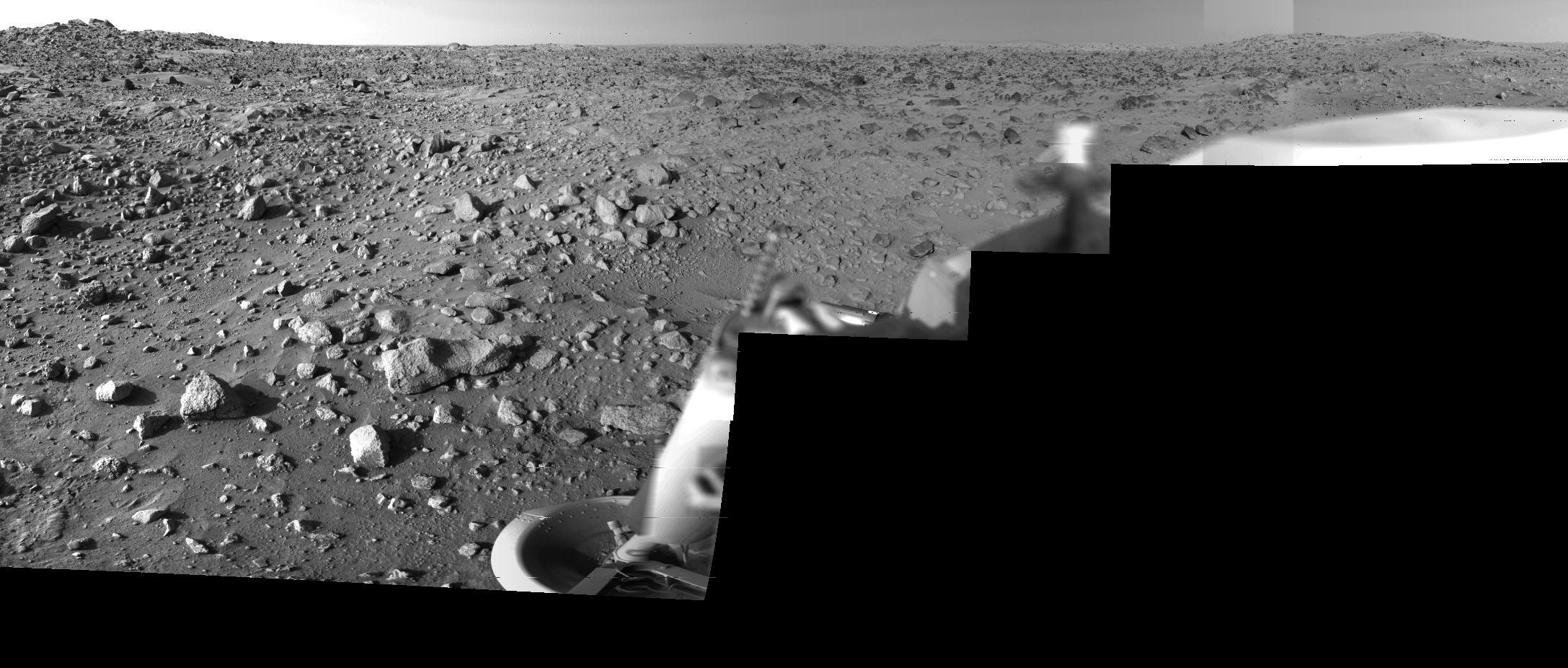

Middle: L1.C2.AM.Q2+Q3 (JPEG = 290 KBytes)

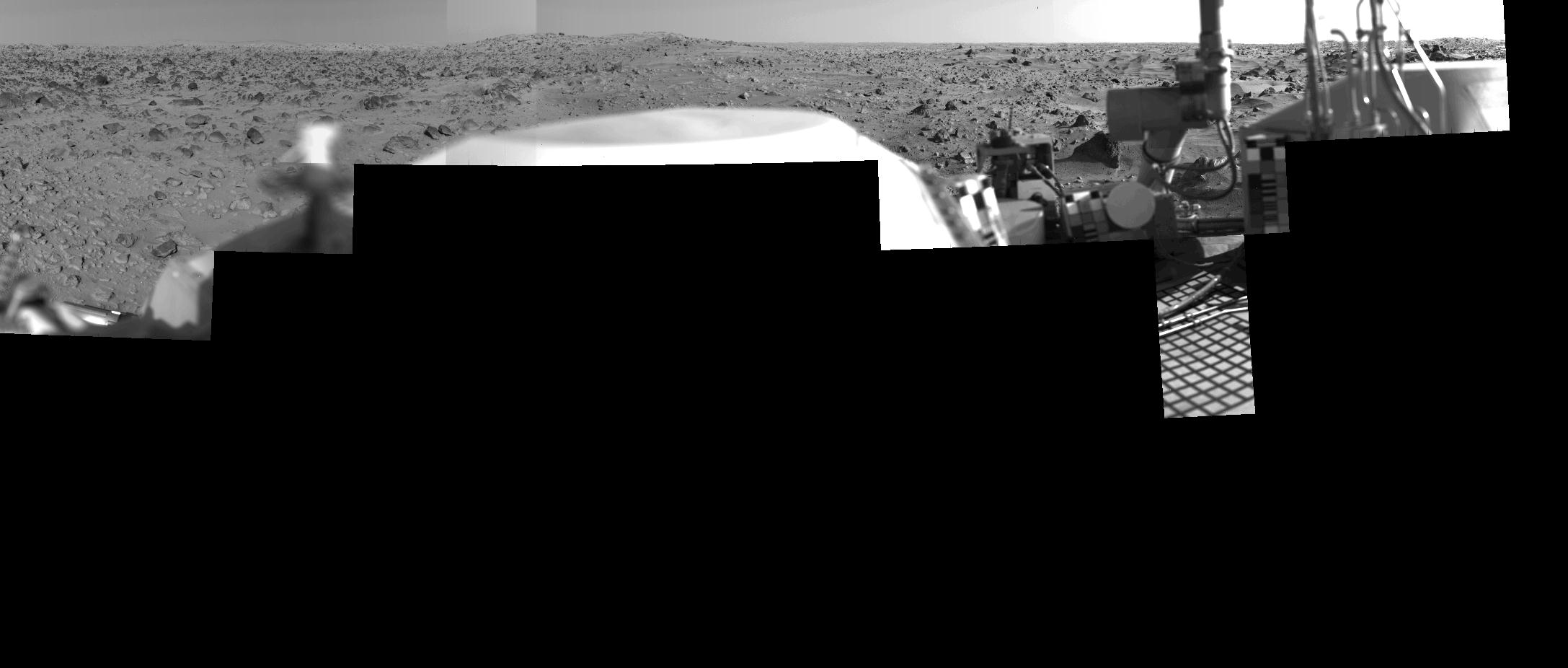

Right: L1.C2.AM.Q3+Q4 (JPEG = 122 KBytes)
Viking Lander 2

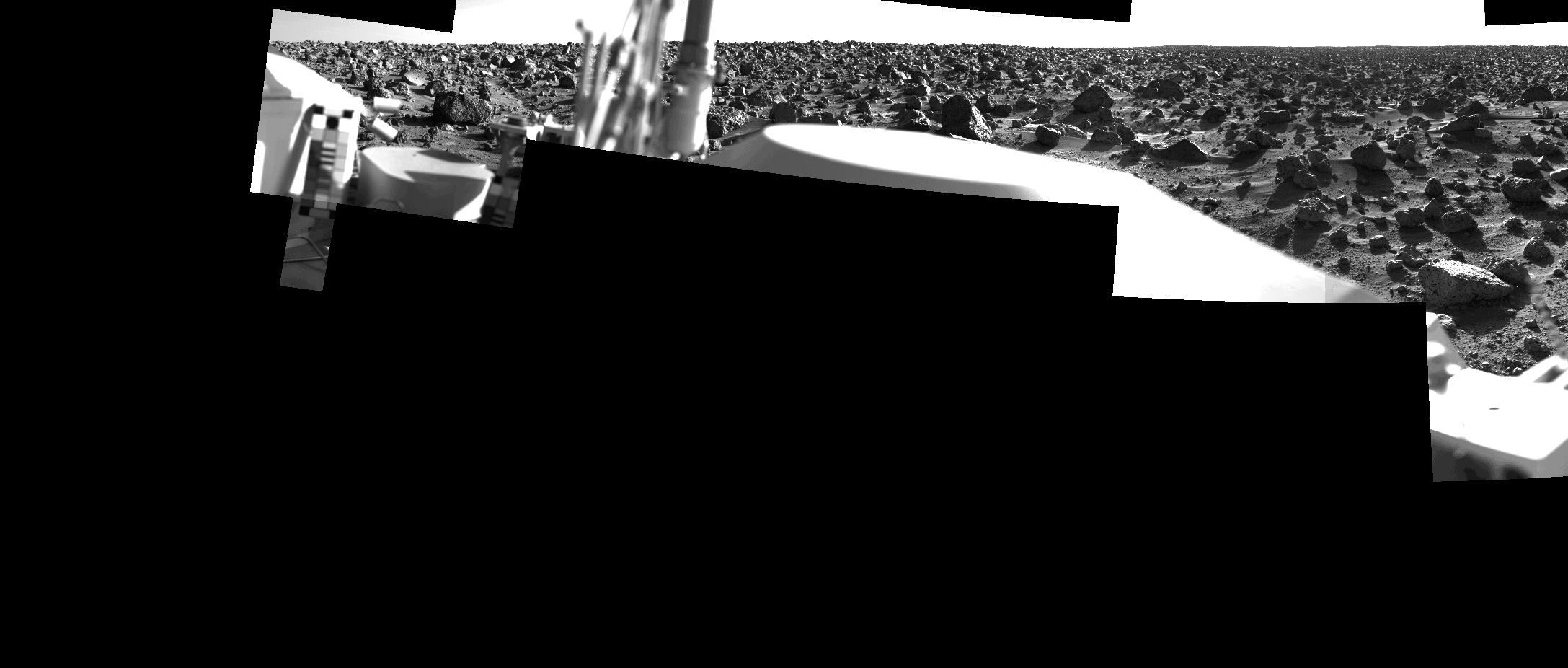

Left: L2.C1.PM.Q1+Q2 (JPEG = 156 KBytes)
Middle: L2.C1.PM.Q2+Q3 (JPEG = 338 KBytes)

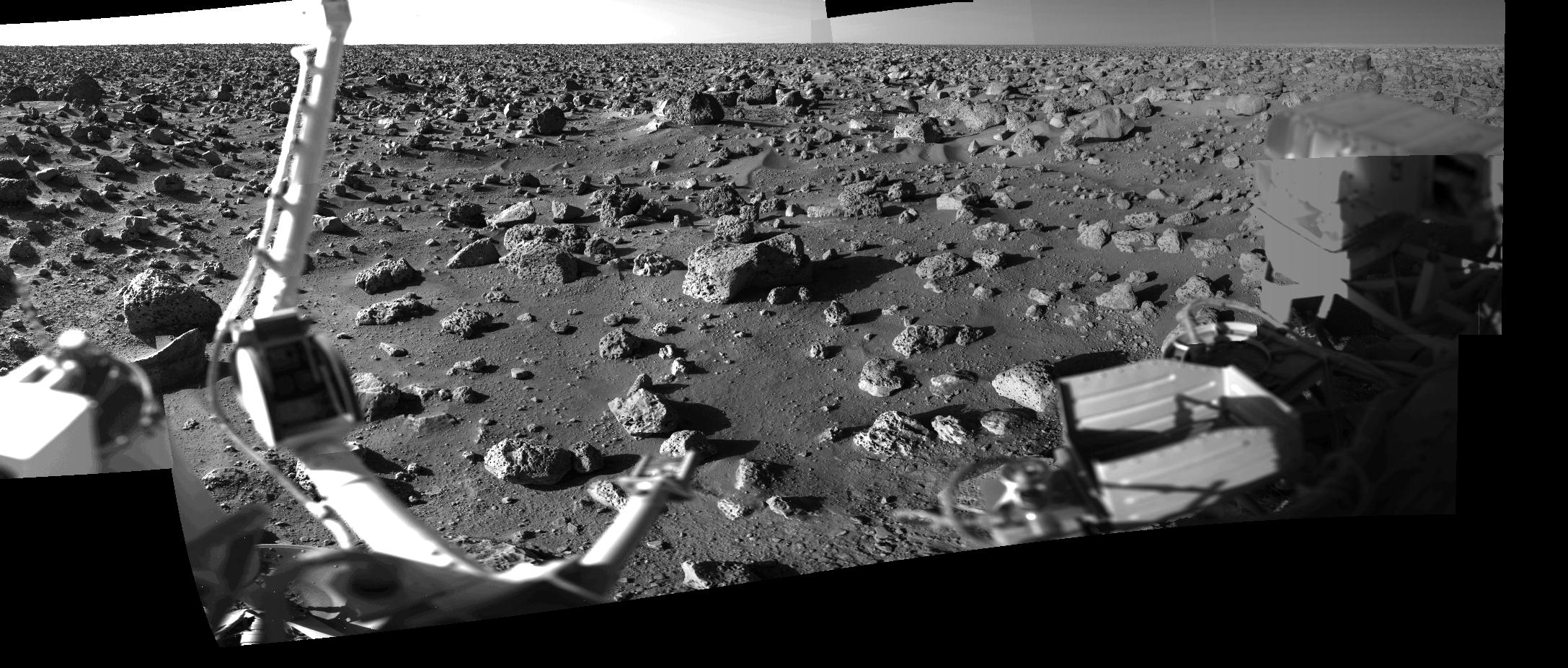

Right: L2.C1.PM.Q3+Q4 (JPEG = 375 KBytes)

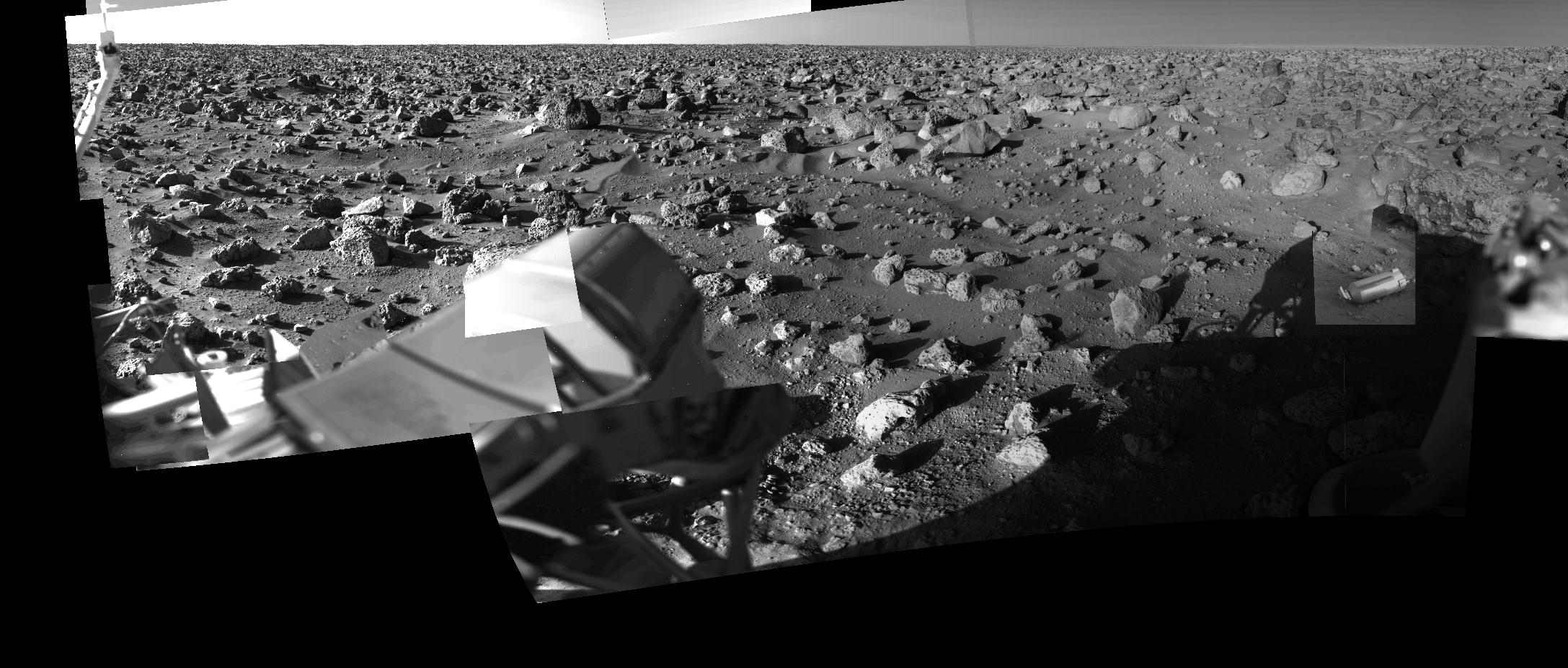

Left: L2.C2.PM.Q1+Q2 (JPEG = 318 KBytes)

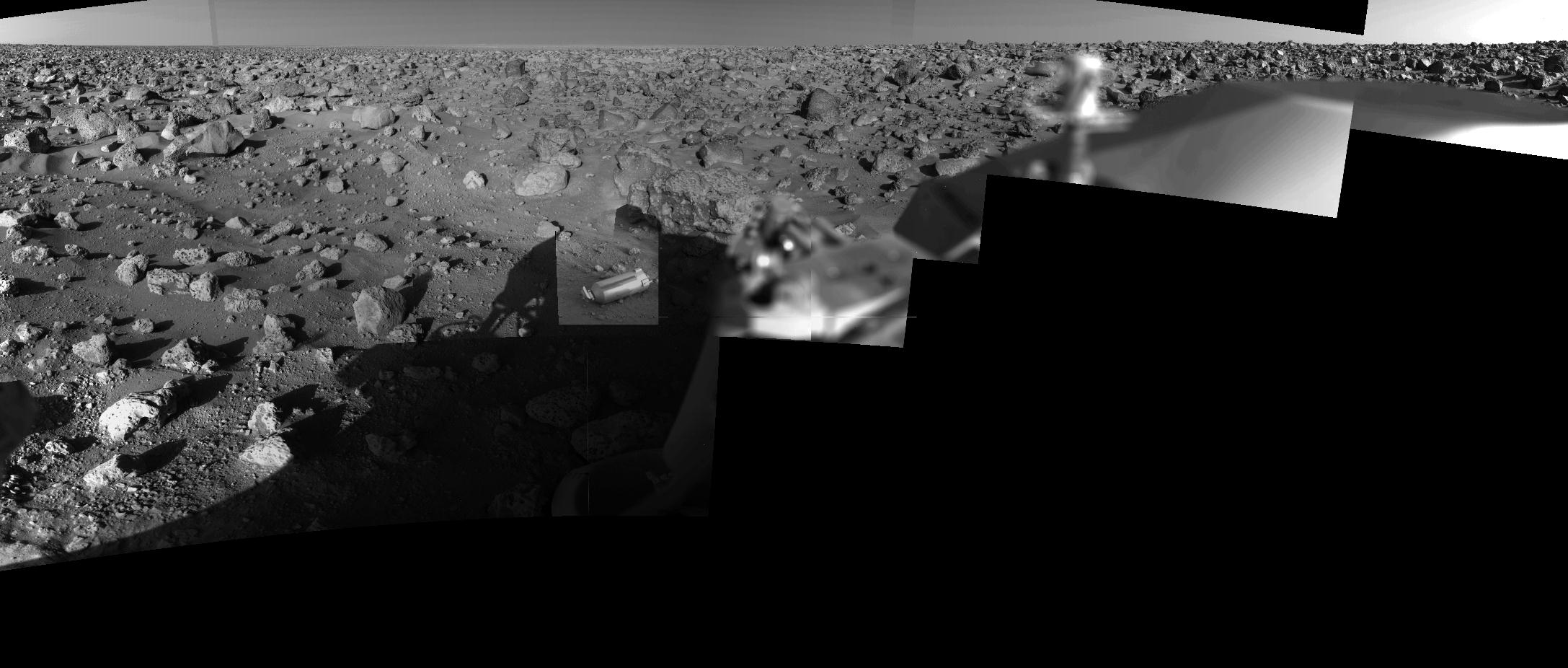

Middle: L2.C2.PM.Q2+Q3 (JPEG = 215 KBytes)

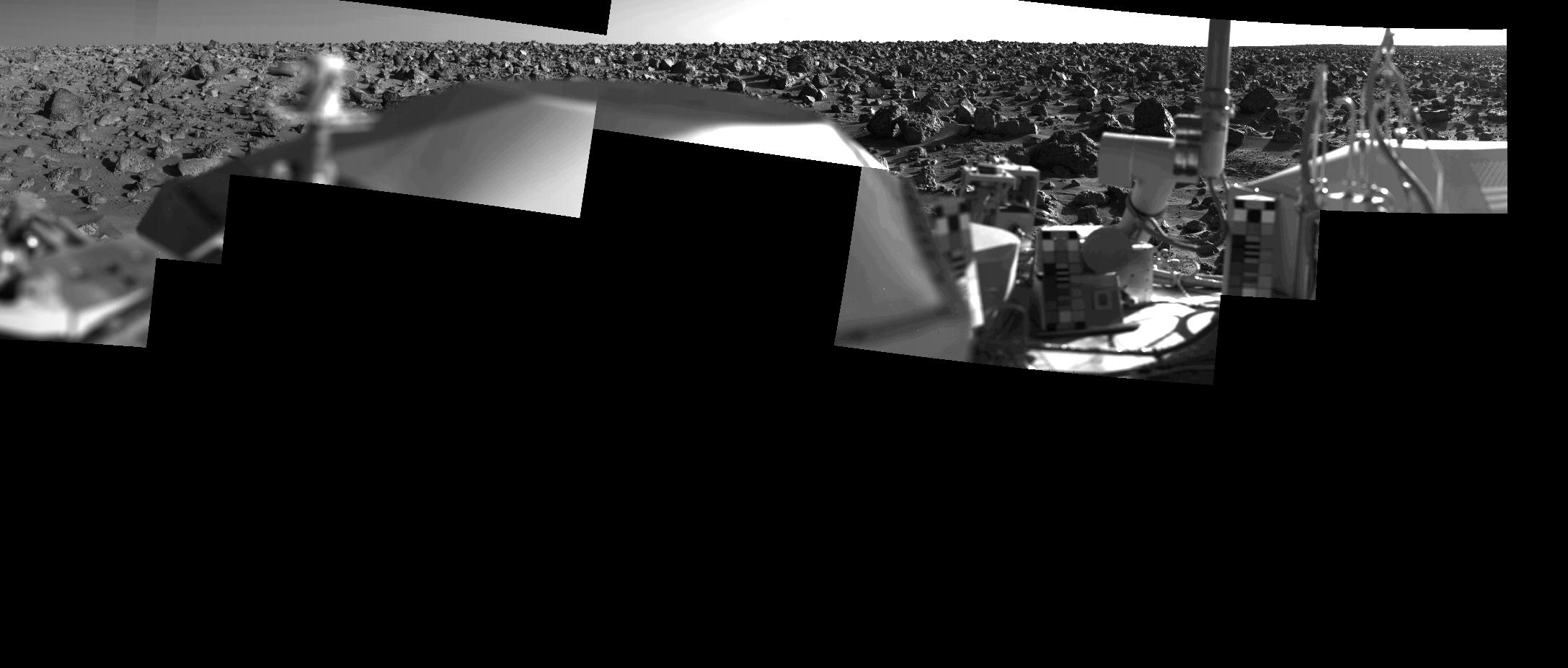

Right: L2.C2.PM.Q3+Q4 (JPEG = 143 KBytes)
References
Jones, K. L., M. Henshaw, C. McMenomy, A. Robles, P. C. Scribner, S.
D. Wall, and J. W. Wilson (1981) Viking lander imaging investigation
during extended and continuation automatic mission: Vol. I - Lander 1
picture catalog of Experiment Data Record. NASA Reference
Publication 1068, vol. I, 648 pp.
Jones, K. L., M. Henshaw, C. McMenomy, A. Robles, P. C. Scribner, S.
D. Wall, and J. W. Wilson (1981) Viking lander imaging investigation
during extended and continuation automatic mission: Vol. II - Lander 2
picture catalog of Experiment Data Record. NASA Reference
Publication 1068, vol. II, 557 pp.
Libes, S., Jr. (1982) Viking lander atlas of Mars. NASA Contractor
Report 3568, 289 pp.
Tucker, R. B. (1978) Viking lander imaging investigation: Picture
catalog of primary mission Experiment Data Record. NASA Reference
Publication 1007, 559 pp.
