Mars Global Surveyor Views of the Mars Polar Landing Site

MGS MOC Release No. MOC2-174, 25 August 1999


High-resolution views of the Mars Polar Lander landing zone were essential to the selection of a safe place for the December 3, 1999, landing to occur. The Mars Global Surveyor (MGS) Mars Orbiter Camera (MOC) took its first pictures of the landing zone in December 1997 and January 1998. After that time, the south polar region was not accessible to the camera until June 1999, when the south polar winter was ending and the sun began to dawn on this region once again. Since the beginning of June 1999, an intense period of imaging has been conducted over the landing zone so that a safe site could be found. The final site has now been identified, and the pictures shown here give some idea of what the Mars Polar Lander will encounter a little more than three months from now.

MOC2-174a: MGS MOC Coverage of Mars Polar Lander Region

This figure shows the zone originally proposed by the Mars Volatiles and Climate Surveyor (MVACS) science team for the Mars Polar Lander mission, which spanned the region from 72° to 78°S latitude and 170° to 230°W longitude. The thin white boxes and lines crossing the proposed zone outline MOC images taken between the first week in June 1999 and the first week in August 1999. The longest images were taken at 12 by 18 meters (39 by 59 feet) per pixel; there are three sets of long images, each taken during a given week in June as the terminator (the line separating "night" from "day") moved south across the landing zone. Smaller swaths represent images at higher resolution. The best resolution so far achieved is about 4 meters (13 ft) per pixel; better images will be taken in September and October as the sun rises farther and the surface becomes better illuminated. This figure shows the location of the primary (blue) and secondary (white) landing ellipses, which were selected on the basis of interpretation of the MGS data, in particular data from the Mars Orbiter Laser Altimeter and the Mars Orbiter Camera. The selection criteria were to find a place that was relatively flat and relatively smooth, but which displayed characteristics of the south polar layered materials. The inset (upper left) shows the location of the landing zone with respect to the south polar residual (year-round) ice cap. The base map used here is a mosaic of Viking Orbiter images from the U.S. Geological Survey.

For the highest-resolution view of this figure (230 Kbytes), Click HERE.

MOC2-174b: Mars Polar Lander and Mars Pathfinder Sites Compared

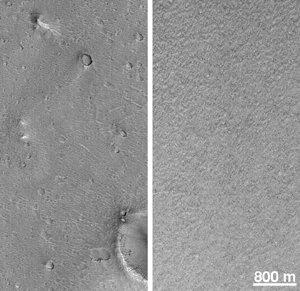

This figure shows a comparison at the same scale (about 5 meters--16 feet--per pixel) of the 1997 Mars Pathfinder landing site (left) and a representative portion within the primary landing ellipse designated for the Mars Polar Lander (right). Familiar landmarks at the Mars Pathfinder site include the "Twin Peaks" (center left), "North Peak" (top), and "Big Crater" (lower right). The south polar layered deposits are generally devoid of the large craters and hills seen at the Pathfinder site. The "wavey" texture at the Pathfinder site (the result of the movement of sediment by the large flood that swept through that location billions of years ago) is replaced at the proposed Mars Polar Lander site by a random arrangement of very low ridges and grooves that suggest the surface has been exposed to erosion by ablation of ices. When the picture on the right was taken, the surface was still mostly covered by winter-time carbon dioxide frost. However, as the sun rises higher, the carbon dioxide frost sublimes (goes directly from solid to vapor), creating the dark spots that are just barely visible in this image. Illumination is from the lower right in both pictures.

For a higher resolution view of this figure (1 .2 Mbytes), Click HERE.

For pictures showing the location of Mars Pathfinder, Click HERE.

MOC2-174c: Mars Polar Lander Site Surface Details

This picture is an enlargement of a portion of a MOC image taken in late July 1999, showing the onset of defrosting of the seasonal carbon dioxide frost cap (small, occasionally fan-shaped dark spots seen throughout this image). Two craters are seen in this image, a very rare occurrence on the south polar layered deposits. Shown for comparison at the same scale is a picture of Jack Murphy (now Qualcomm) Stadium in San Diego, California. Clearly visible in the inset is the baseball diamond and pitcher's mound; less clear but certainly visible are a number of automobiles (small light dots) in the parking lot west (to the left) of the stadium. The elevation of the sun in the Mars image is about 10°; the sunlight is coming from the bottom (north) in this image. The shadow of the rims of the craters can be used to determine their depths. The smaller crater in the bottom right corner is about 60 m (197 feet) across and 7 m (23 feet) deep; the large crater just below the inset is 175 m (574 feet) across and 17 m (56 feet) deep. Similar calculations for other features in the images indicate that much of the surface is smooth and flat. Relief is typically much less than 1-2 meters (3-7 feet) in height over areas of 10-15 meters across (33-49 feet).

MOC2-174d: Mars Polar Lander Site Compared With Washington, D.C.

This figure compares five representative views of the Mars Polar Lander primary ellipse near 76°S, 195°W, with a similar-sized view of the U.S. capital for scale. Each box is approximately 1.2 km (0.75 mi) on a side. The brightness variations from one box to another among the Mars images reflects different amounts of frost cover, and possibly the differing compositions of frost (i.e., carbon dioxide vs. water ice). The brightness also depends upon surface texture both above and below the scale of these images (about 5.5 meters--18 feet--per pixel). These pictures show the range of surface texture and morphology that is found within the landing ellipse. Mounds and valleys that range from a few meters to as much as one hundred meters (328 ft) across--with relief of a few meters--dominate the landing site. All of the frost seen here is expected to be gone by the time the Mars Polar Lander arrives in December 1999. The Mars images are illuminated from the lower right. The view of Washington D.C. shows the Capitol Building at the center right and the National Air and Space Museum at center left (immediately below the grassy rectangles of the Mall).
