ATLO Process Continues
Stacking the Spacecraft and Weighing "Jaws"
In February, the Nadir Equipment Deck (NED) was mated to the Equipment
Module, and the completed Equipment Module was then mated with the
propulsion module. A set of images of this process can be found at
URL
http://mgs-www.jpl.nasa.gov/mgs/se/atlo_pics/build/buildup.html
Reproduced here are some of the images that show the MOC handling fixture.
Attaching the
NED to the rest of the Equipment Module
Attaching the
NED to the rest of the Equipment Module
The stacked spacecraft from the -Y direction (showing the MOC
handling fixture "Jaws" in back)
The stacked spacecraft from the -X direction
During February, a spacecraft mass audit was conducted in anticipation
of delivery to the launch vehicle manufacturer the "present best
estimate" of the launch mass. It was discovered that the mass of the
MOC 2 handling fixture (affectionately called "Jaws") was not known to
sufficient precision. After discussion, JPL and LMA management
decided to risk the removal of the cover in order to weigh it.

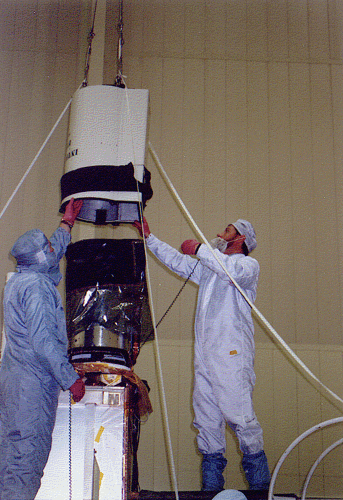

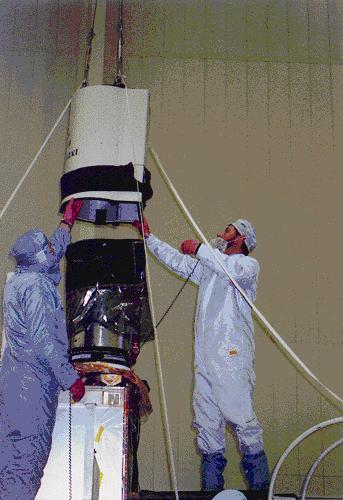

Removal of "Jaws" for Weighing
GIF = 137 KBytes

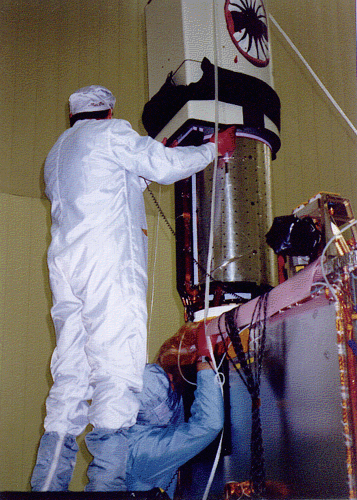

Removal of "Jaws" for Weighing
GIF = 149 KBytes

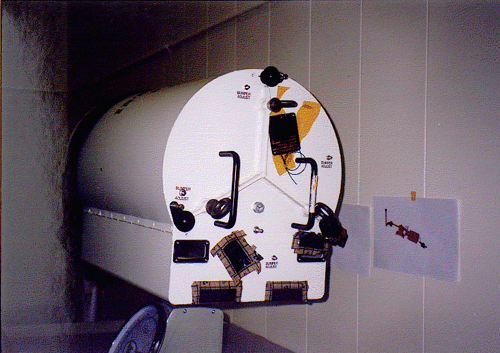

"Jaws"
on the scale
GIF = 141 KBytes

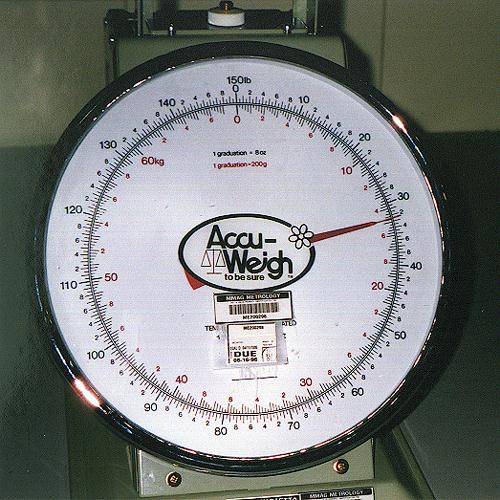

The Answer:
32.5 pounds (14.75 kg)
GIF = 259 KBytes
